MAGNUM DX900 INDUSTRIAL ROUTER
Four serial and 4 ethernet with WAN port [ T1 or DDS ]

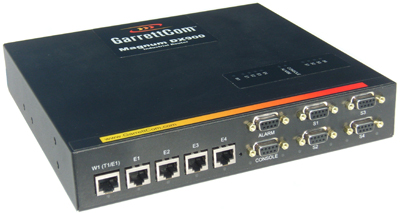

Magnum DX900 Industrial Router
Access to remote sites via
Digital WANs using DDS or
T1/E1, IP and Frame Relay
rack mounting with integral
CSU/DSU and power supply
router, Ethernet switch,
Serial terminal server and
security appliance
ESD specs and -40° to +85° C

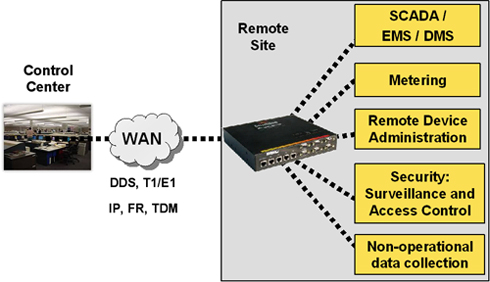

with no fan. The Magnum DX900 Industrial Router enables remote network connectivity
to substations, transportation systems and other remote industrial sites
agement security including
IPsec, SSL and firewall
The versatility of the DX900 increases cost effectiveness in many
applications where a combination of WAN access, IP routing, Ethernet switching, Serial-
IP terminal services and advanced security features is provided in a single com-
pact device.
- 4 Ethernet Ports, 4 Serial Ports, WAN Port
- Access to remote sites via digital WANs using DDS or T1/E1, IP and Frame Relay
- Versatile integration of IP router, Ethernet switch, Serial terminal server and security appliance
- Designed for use in secure NERC CIP compliant environments
- Stateful IP firewall with logging, NAT/PAT
- Network security perimeter and management security including IPsec, SSL and SSH
- Ethernet switching with VLANs, QoS and high performance RSTP
- Routing per interface and/or VLAN: static routing, RIP, OSPF, BGP, VRRP
- Modbus TCP and Modbus-ASCII/RTU interworking, DNP and serial-IP raw mode
- Compact panel, DIN-Rail or rack mounting with integral DSU/CSU and power supply
- Hardened to substation EMI/ESD specs and -40 to 85 C with no fans
- Meets IEC 61850-3 specifications for EMI/ESD protection
- AC and DC power options
The Magnum DX900 Industrial Router enables remote network connectivity to substations, transportation systems, and other remote industrial sites using Digital WAN services such as DDS, T1/E1, frame relay, TDM, IP and MPLS-based VPN services. The DX900's versatility provides a cost effectiveness combination of WAN access, IP routing, Ethernet switching, Serial IP terminal services and advanced security features in a single device. Compact, rugged packaging make the DX900 ideal for smaller and mid-sized remote sites such as distribution substations and transportation control pedestals.
DX900, T1/E1, 4Serial, 4TX, 90-250Vdc/Vac, Magnum DX900 Industrial Router,
hardened for substations and other harsh Industrial environments. One T1/E1 WAN port
with integral DSU/CSU, four RS232 / RS485 / RS422 software selectable serial ports,
four 10/100 TX Ethernet Switch ports. 90 - 250V DC / AC power supply, panel
mounting. Includes IP routing, Serial-IP terminal services, Ethernet switching, TCP/IP
firewall, IPsec VPN, SCADA Frame Forwarding and secure management. MNS-DX
software license included. Comes with panel mount. Order rack or DIN-Rail kits
separately.
$2,689.00
DX900-01-H
DX900, DDS, 4Serial, 4TX, 90-250Vdc/Vac, Magnum DX900 Industrial Router, hardened
for substations and other harsh Industrial environments. One DDS WAN port with
integral DSU/CSU, four RS232 / RS485 / RS422 software selectable serial ports, four
10/100 TX Ethernet Switch ports. 90 - 250V DC / AC power supply, panel mounting.
Includes IP routing, Serial-IP terminal services, Ethernet switching, TCP/IP firewall,
IPsec VPN, SCADA Frame Forwarding and secure management. MNS-DX software
license included. Comes with panel mount. Order rack or DIN-Rail kits separately.
$2,689.00
